- Description
-
General Specifications
• Motor:Extemal rotor motor
• Frame & Impller: Impeller PA66(94v-0)
• Operating temperature: -20°to + 70°Major Characteristic Parameters
Specifications
Model
Rated Voltage
Frep
Rated Current
Input
Power
Speed
Air Flow
Air Pressure
Noise
Part NO.
V
Hz
A
W
R.P.M
CFM
mmh2o
dB.A
WAA22585HG115B
115
50
1.30
152
2550
618
52
73
WAA22585HG230B
230
50
0.65
152
2550
618
52
73
Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing

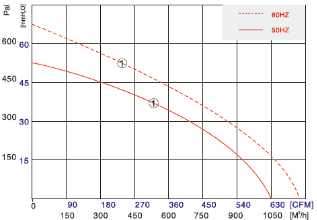

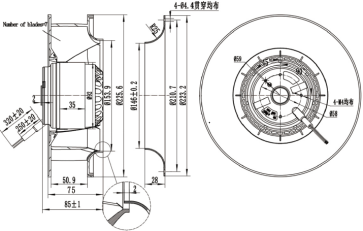

Air Flow and Static Pressure acteristics Unit:mm
