AC AXIAL FAN Series
Keyword:
hiddenValue
- Description
-
General Specifications
• Motor:Shaded Pole
• Frame & Impller: Aluminum Die-casting
ADC-12, 5 Blades , Metal blades
• Operating temperature: -20°to + 105°Major Characteristic Parameters
Specifications
Model
Rated Voltage
Frep
Rated Current
Input
Power
Speed
Air Flow
Air Pressure
Noise
Part NO.
V
Hz
A
W
R.P.M
CFM
inh2o
dB.A
WAA12738HG115B
115
50
0.28
27
2600
120
0.28
50
WAA12738HG230B
230
50
0.16
25
2600
120
0.28
50
Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing

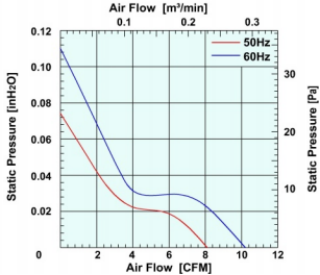

Air Flow and Static Pressure acteristics Unit:mm
