DC AXIAL FAN Series
Keyword:
hiddenValue
- Description
-
General Specifications
• Motor:4 Poles brushless DC motor
• Frame & Impller:Plastic(UL 94V-0)
• Storage temperature: -40°to + 75°
• Operating temperature: -10°to + 75°Major Characteristic Parameters
Specifications
Model
Rated Voltage
Operating
Voltage range
Rated Current
Speed
Air Flow
Air Pressure
Noise
Part NO.
V
V
A
R.P.M
CFM
M³/min
mmh2o
inh2o
dB.A
WAD22580MG24B
24
14.0~26.4
2.4
2950
618.0
17.60
21.2
0.83
60.0
WAD22580MG48B
48
28.0~56.0
1.2
2950
618.0
17.60
21.2
0.82
52.2
• Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
Air Flow and Static Pressure acteristics

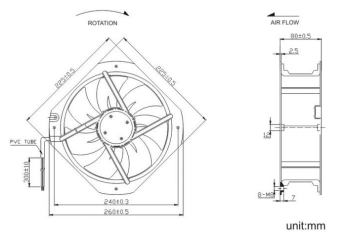

Unit:mm
