DC AXIAL FAN Series
Keyword:
hiddenValue
- Description
-
General Specifications
• Motor:4 Poles brushless DC motor
• Frame & Impller:Plastic(UL 94V-0)
• Storage temperature: -40°to + 75°
• Operating temperature: -10°to + 75°Major Characteristic Parameters
Specifications
Model
Rated Voltage
Operating
Voltage range
Rated Current
Speed
Air Flow
Air Pressure
Noise
Part NO.
V
V
A
R.P.M
CFM
M³/min
mmh2o
inh2o
dB.A
WAD15051IG24B
24
14.0~16.4
0.50
2500
187
5.29
8.89
0.35
52.0
WAD15051IG48B
48
28.0~56.0
0.30
2500
187
5.29
8.89
0.35
52.0
WAD15051JG24B
24
14.0~16.4
0.70
3500
263
7.44
20.85
0.82
57.0
WAD15051JG48B
48
28.0~56.0
0.40
3500
263
7.44
20.85
0.82
57.0
WAD15051LG24B
24
14.0~16.4
1.00
4000
291
8.24
23.22
0.91
61.5
WAD15051LG48N
48
28.0~56.0
0.50
4000
291
8.24
23.22
0.91
61.5
WAD15051MG24B
24
14.0~16.4
1.50
4400
323
9.14
26.93
1.06
63.5
WAD15051MG48B
48
28.0~56.0
0.70
4400
323
9.14
26.93
1.06
63.5
WAD15051HG24B
24
14.0~16.4
2.10
4800
350
9.90
31.42
1.24
65.5
WAD15051HG48B
48
28.0~56.0
0.85
4800
350
9.90
31.42
1.24
65.5
WAD15051UG24B
24
14.0~16.4
2.40
5200
378
10.70
34.44
1.36
68.0
WAD15051UG48B
48
28.0~56.0
1.30
5200
378
10.70
34.44
1.36
68.0
• Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
Air Flow and Static Pressure acteristics

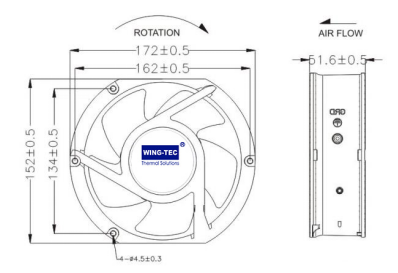

Unit:mm
