DC AXIAL FAN Series
Keyword:
hiddenValue
- Description
-
General Specifications
• Motor:4 Poles brushless DC motor
• Frame & Impller:Plastic(UL 94V-0)
• Storage temperature: -40°to + 75°
• Operating temperature: -10°to + 75°Major Characteristic Parameters
Specifications
Model
Rated Voltage
Operating
Voltage range
Rated Current
Speed
Air Flow
Air Pressure
Noise
Part NO.
V
V
A
R.P.M
CFM
M³/min
mmh2o
inh2o
dB.A
WAD12038LG12B
12
7.0~13.2
0.08
4400
172.4
4.88
19.61
0.77
54.1
WAD12038LG24B
24
14.0~26.4
0.05
4400
172.4
4.88
19.61
0.77
54.1
WAD12038LG48B
48
28.0~56.0
0.19
4400
172.4
4.88
19.61
0.77
54.1
WAD12038MG12B
12
7.0~13.2
0.15
5500
203.6
5.77
25.78
1.01
60.9
WAD12038MG24B
24
14.0~26.4
0.21
5500
203.6
5.77
25.75
1.01
60.9
WAD12038MG48B
48
28.0~56.0
0.12
5500
203.6
5.77
25.78
1.01
60.9
WAD12038HG12B
12
7.0~13.2
0.25
6500
237.0
6.71
34.91
1.37
65.2
WAD12038HG24B
24
14.0~26.4
0.13
6500
237.0
6.71
34.91
1.37
65.2
WAD12038HG48B
48
28.0~56.0
0.45
6500
237.0
6.71
34.91
1.37
65.2
WAD12038UG48B
48
28.0~56.0
0.31
7500
277.7
7.86
47.90
1.89
69.8
• Bearing system B: Two Ball Bearing F:Fluild Bearing S:Sleeve Bearing
Air Flow and Static Pressure acteristics

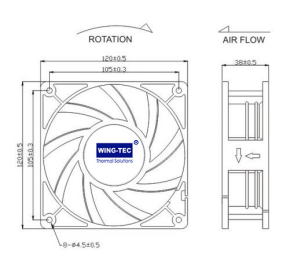

Unit:mm
